2004 Dodge Ram 1500 Idle Air Control Valve Location And Replacement Guide

Maintaining the rugged performance of a 2004 Dodge Ram 1500 requires precise attention to the components that keep its V8 heart beating smoothly at a standstill. When your truck begins to stall at stoplights or struggles with a surging idle, the culprit is often a hidden, carbon-caked component: the Idle Air Control (IAC) valve. This small but vital actuator is responsible for fine-tuning the air-fuel mixture when your foot is off the gas. In this guide, you will learn the exact location of the IAC valve, how to diagnose its failure using professional methods, and the step-by-step process for cleaning or replacing it to restore your engine’s efficiency and reliability.

Identifying the 2004 Dodge Ram 1500 Idle Air Control Valve Location

📤 Share


💾 Download

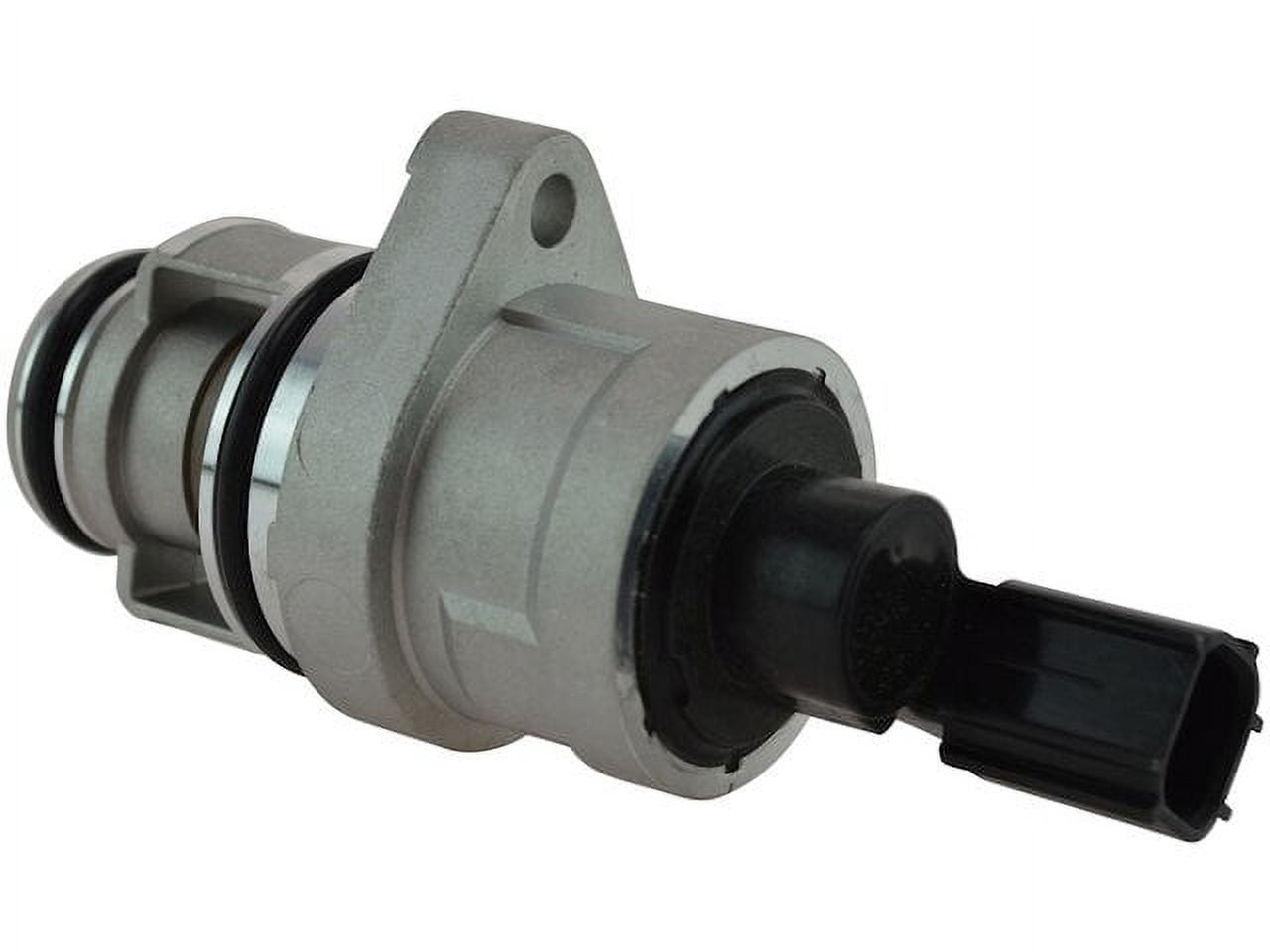

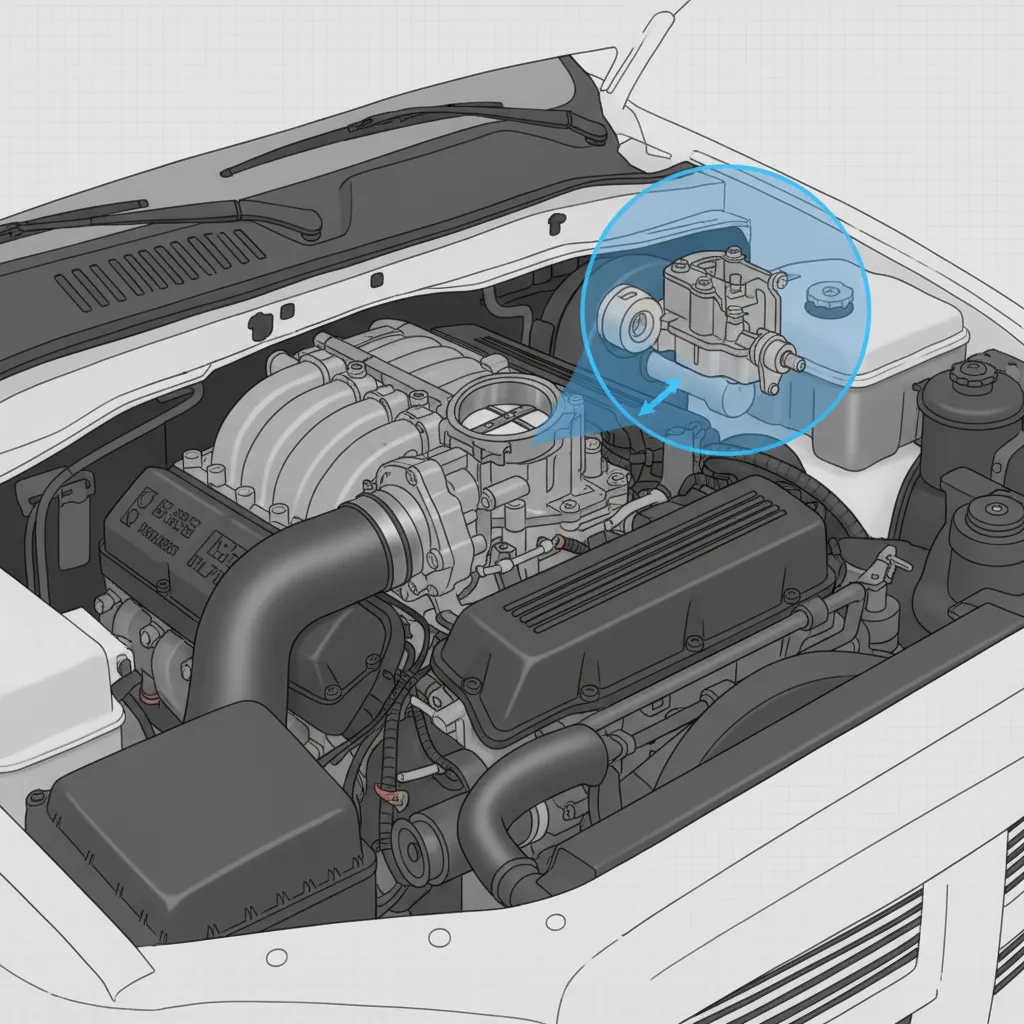

Finding the IAC valve on a 2004 Dodge Ram 1500 is straightforward once you know what you are looking for. It is situated directly on the throttle body assembly. Depending on your specific engine configuration—most commonly the 4.7L V8—the valve is typically mounted on the rear or side of the throttle body casting. It is a small, cylindrical metal component, roughly the size of a film canister, and is secured by two screws, which are usually T20 or T25 Torx heads.

To locate it effectively, first remove the large plastic air resonator box or the intake tube that sits atop the engine. Once the throttle body is exposed, look for the four-pin electrical harness connector plugged into the end of the valve body. In my 15 years of experience, a common pitfall for DIYers is mistaking the Throttle Position Sensor (TPS) for the IAC valve. While both are mounted on the throttle body, the TPS is usually located on the side of the throttle shaft to monitor the butterfly valve’s angle, whereas the IAC valve is positioned near a dedicated bypass port designed to route air around the closed throttle plate. This bypass is what maintains a target idle of 600-700 RPM when the truck is stationary.

The Critical Role of the IAC Valve in Engine Performance

The Idle Air Control valve is the “breathing tube” for your engine when the throttle plate is fully closed. Controlled by the Powertrain Control Module (PCM), the IAC valve uses a motorized pintle to open or close an air passage. The PCM calculates the necessary air bypass based on real-time data including engine coolant temperature, ambient air temperature, and current electrical load. For instance, when you engage the A/C compressor or turn the steering wheel sharply (engaging the power steering pump), the IAC valve must open slightly to increase the engine’s torque and prevent a stall.

When this component fails, the consequences are immediate. Research indicates that a malfunctioning IAC valve can contribute to a 5-10% decrease in fuel efficiency. This occurs because the PCM often tries to compensate for a sticking valve by adjusting fuel trim levels, leading to an overly rich or lean condition at idle. Furthermore, carbon buildup—a byproduct of the exhaust gas recirculation and crankcase ventilation systems—is the primary cause of mechanical sticking. If the pintle cannot move freely, the engine cannot “react” to loads, causing the RPM to dip dangerously low when coming to a stoplight.

Common Symptoms and Diagnostic Codes for Ram 1500 Owners

Identifying a failing IAC valve usually begins with a “hunting” idle. You may notice your tachometer needle bouncing erratically between 400 and 1,200 RPM while you are waiting at a light. In severe cases, the truck may stall entirely unless you keep your foot slightly on the gas pedal—a classic sign that the air bypass port is completely blocked or the valve motor is burnt out.

When the IAC valve malfunctions, the PCM will typically trigger a Check Engine Light. Owners should look for specific OBD-II diagnostic trouble codes (DTCs):

• P0505: Idle Control System Malfunction (Electrical failure).
• P0506: Idle Speed Lower Than Expected (Pintle stuck closed).
• P0507: Idle Speed Higher Than Expected (Pintle stuck open).

DTC P0507 is particularly common on the Dodge Ram and triggers when the idle RPM is 200+ higher than the target stored in the PCM. Beyond digital codes, listen for a hissing sound near the throttle body, which often indicates an improperly seated IAC valve or a vacuum leak at the gasket. Visually, if you remove the valve and find heavy black carbon soot on the pintle tip, cleaning may provide a temporary fix, but replacement is the only long-term solution for high-mileage trucks.

Essential Idle Relearn Procedure Post-Installation

Once the new IAC valve is bolted in and the battery is reconnected, the job isn’t finished. The PCM must “learn” the specific air-flow characteristics of the new part. Failure to perform a relearn can result in “limp mode” or persistent P0507 codes even with a brand-new part. In some cases, the engine might idle at 1,500 RPM for the first few minutes after replacement—this is normal as the computer adjusts the stepper motor position.

The DIY Relearn Process

1. Initial Initialization: Turn the ignition to the “On” position (do not start) for 30 seconds. This allows the PCM to cycle the IAC pintle to its seat and establish a zero point.
2. Cold Idle: Start the engine and let it idle for 5-10 minutes. Do not touch the accelerator pedal during this time.
3. Load Cycling: Turn on the A/C to its highest setting and move the transmission to “Drive” (while keeping your foot on the brake) for two minutes. This teaches the PCM how to compensate for engine load.

If the idle remains unstable after this process, a professional scan tool at a shop serving your location may be required to perform a “hard reset” of the idle air adaptives.

Finding Professional Service and Parts in Your Community

While replacing an IAC valve is a manageable DIY task, there are times when seeking a professional at a trusted local repair facility is the wiser choice. A certified technician can use an oscilloscope to verify the electrical signals from the PCM, ensuring the problem isn’t a frayed wire or a failing computer module rather than the valve itself. Furthermore, professional installation often includes a 12-month/12,000-mile warranty on both the part and the labor, providing peace of mind for high-use work trucks.

When sourcing parts, choosing a convenient local location allows for immediate exchanges if the component is defective out of the box. Many accessible community auto stores carry Mopar-equivalent parts that meet or exceed OEM specifications. Remember to have the technician check the entire vacuum system; a local Dodge owner once found that a simple $20 vacuum hose was the real culprit after a professional diagnostic at a nearby shop, saving them from an unnecessary valve purchase.

Conclusion

The 2004 Dodge Ram 1500 remains a staple of American roads, but its reliability depends on the health of small components like the Idle Air Control valve. By understanding its location on the throttle body, recognizing the symptoms of carbon buildup, and following the correct replacement and relearn procedures, you can maintain your truck’s performance and fuel efficiency. Whether you choose to tackle this repair in your own driveway or visit a professional serving your local community, addressing idle issues promptly prevents more costly engine damage down the road. If your Ram continues to struggle with stalling or surging after following this guide, contact a certified technician in your area to perform a professional diagnostic today.
