2007 Dodge Ram Relay Location: Power Distribution Center And Tipm Identification Guide

Finding your 2007 Dodge Ram stranded in a parking lot or facing an intermittent headlight failure can often be traced back to a single, small plastic cube: the electrical relay. These components act as the heavy-duty switches for your truck’s most vital systems, from the fuel delivery that keeps the engine running to the cooling fans that prevent a catastrophic overheat. Locating the specific relay for the fuel pump, starter, or HVAC system is notoriously difficult because the 2007 model year utilizes a complex Power Distribution Center (PDC) and an Integrated Power Module that hides many components from plain sight. This guide provides a professional walkthrough of the 2007 Dodge Ram relay locations, including detailed identification diagrams, troubleshooting tips for the TIPM, and steps to get your truck back on the road using resources available in your community.

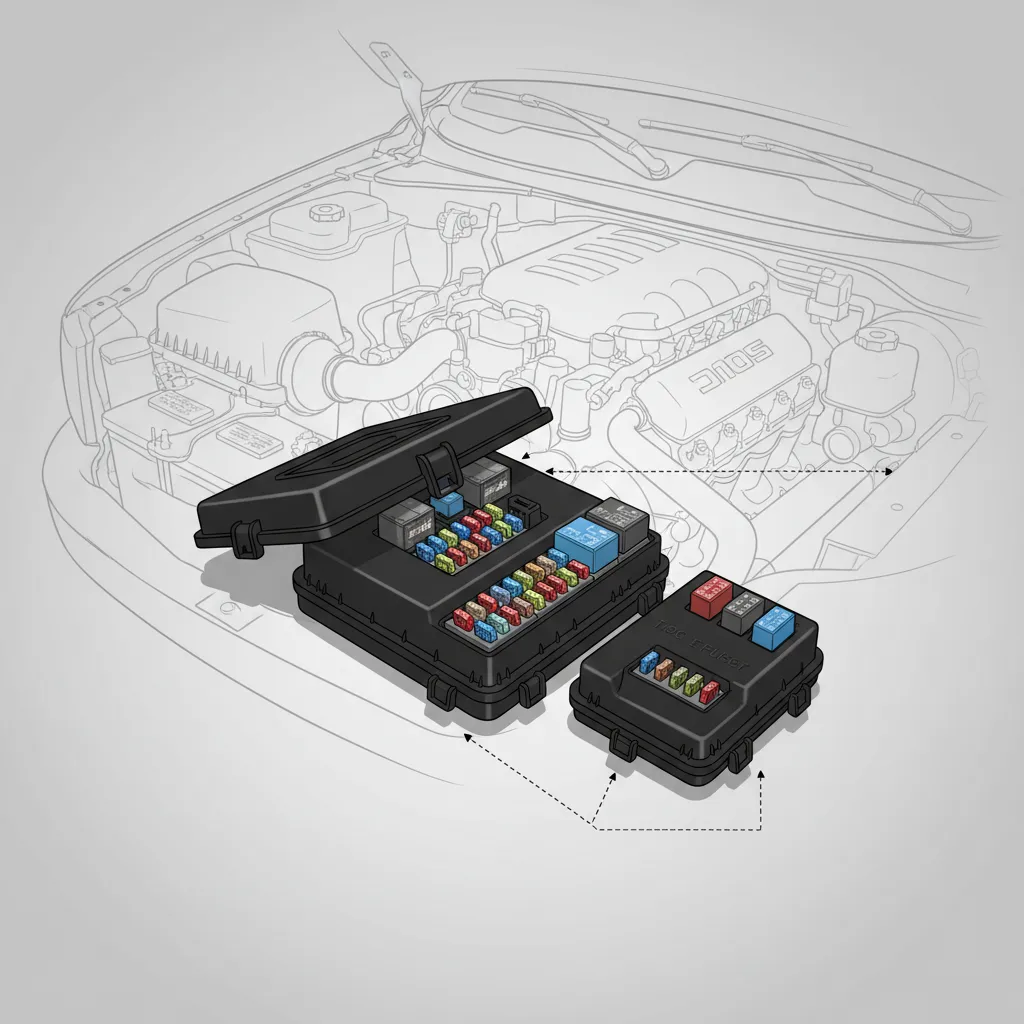

Locating the 2007 Dodge Ram Power Distribution Center (PDC)

📤 Share


💾 Download

The nerve center of your truck’s electrical system is the Power Distribution Center (PDC). In the 2007 model year, this is situated on the driver’s side engine compartment, immediately adjacent to the battery housing. It is a large, rectangular black plastic box that houses the majority of the high-amperage fuses and modular relays. Accessing this unit is the first step in any electrical diagnostic journey. According to RepairPal, electrical system failures are a primary driver of service visits for the 2007 Ram 1500/2500 series, often originating within the PDC or the broader Integrated Power Module (IPM) architecture.

The 2007 Dodge Ram transitioned into a more consolidated electrical design where the PDC is part of the IPM. This architecture was designed to streamline manufacturing but can make DIY repairs more nuanced. To access the internal layout, you must remove the protective plastic cover. Over time, these covers become brittle due to engine heat. A practical insight from years of shop work: if the locking tabs feel stuck, do not force them by hand alone. Use a flathead screwdriver to gently pry the tabs while applying upward pressure on the lid. This is especially important for trucks serving in northern climates where road salt and grime can seize the plastic mechanisms.

📋
Step-by-Step PDC Access

1

Safety First

Always disconnect the negative battery cable before working on the electrical system to prevent short circuits or accidental airbag deployment.

2

Release the Tabs

Locate the two or four locking tabs on the perimeter of the PDC box. Press them inward simultaneously and lift the cover straight up.

3

Inspect for Debris

Clear any leaves or dirt that may have accumulated around the seals to prevent moisture from entering the sensitive electronics after reassembly.

Identifying Critical Relay Locations for Fuel, Start, and Lighting Systems

The 2007 Dodge Ram relies on several “modular” relays that can be easily pulled and replaced. Identifying these specific slots is crucial when your truck fails to perform basic functions. User data from Ram community discussions indicates that over 40% of starting issues in the 2007 model year are resolved by inspecting or swapping the fuel pump or starter relays.

The Fuel Pump Relay

This is arguably the most searched-for relay location. If your truck “cranks but won’t start,” the fuel pump relay is the first suspect. In the 2007 PDC, this is typically a smaller, square relay. However, there is a nuance: in some trim levels of the 2007 Ram, the fuel pump relay is actually an internal component of the TIPM (Totally Integrated Power Module) and is not a plug-and-play unit. If your PDC diagram does not show a dedicated fuel pump relay, you are likely dealing with an integrated circuit.

Starter and AC Relays

The starter relay is usually one of the larger, high-amperage relays in the grid. It is responsible for sending the high-current signal to the starter solenoid. For owners serving their vehicle in hot climates or using it for heavy-duty towing, the AC Compressor Clutch and Condenser Fan relays are vital. These are located in the center rows of the PDC and are frequent failure points due to the high cycle rate of the air conditioning system during summer months.

Understanding the 2007 Dodge Ram TIPM and Internal Relay Issues

One of the most frustrating aspects for 2007 Ram owners is the Totally Integrated Power Module (TIPM). Think of the TIPM as the gateway for the truck’s entire electrical architecture. While the PDC contains visible relays, the TIPM manages “non-serviceable” internal relays. These are soldered directly onto the circuit board inside the unit. If your turn signals stop working, your wipers activate on their own, or your headlights won’t turn off, the culprit is often a failing internal relay within the TIPM rather than a modular one you can find at a trusted local parts store.

The TIPM in 2007-2009 Dodge vehicles has been subject to multiple investigations regarding intermittent power loss to critical safety systems. A common “expert” work-around for a failed internal fuel pump relay is the use of a bypass cable—a temporary fix that pulls power from a different ignition-switched source in the PDC to power the fuel pump directly. While convenient, this should only be a stop-gap measure. The long-term solution involves either sending the module to a nearby specialized electronics remanufacturer or replacing the entire module, which can be sourced via Mopar parts distributors.

Troubleshooting and Testing 2007 Dodge Ram Relays

Before spending money on a new relay, you should perform a professional-grade diagnostic. The most straightforward method is the “Relay Swap.” Since many relays in the PDC are identical, you can safely exchange a non-critical relay (like the Horn) with a critical one (like the AC or Starter) to see if the functionality returns. If the truck starts with the horn relay in the starter slot, you’ve confirmed a relay failure.

Using a Digital Multimeter (DMM)

For a more technical approach, use a DMM to check the relay’s health. A standard automotive relay should show between 50 and 120 ohms of resistance across the coil pins (usually labeled 85 and 86). If you see “OL” (Open Loop) or zero resistance, the internal coil is burnt out. Additionally, check for the “Click.” When you turn the key, you should feel or hear the relay’s mechanical armature engaging. If it stays silent, it isn’t receiving the trigger signal from the ECM or the coil is dead.

Corrosion is a silent killer in Dodge electrical systems. In vehicles serving in coastal regions or high-humidity areas, green oxidation can build up on the relay terminals. This creates high resistance, leading to intermittent failures. Before replacing the relay, clean the PDC terminals with a high-quality electrical contact cleaner available at most auto parts stores.

Accessing Expert Electrical Support in Your Local Community

While many relay issues are DIY-friendly, the 2007 Dodge Ram’s electrical architecture can sometimes require professional intervention. If you have swapped relays and checked fuses but the problem persists, you may be facing a wiring harness failure or a logic error within the TIPM. Certified technicians serving your area have specialized diagnostic equipment, such as the Chrysler StarScan tool, which can read “B-codes” (Body codes) that standard OBD-II scanners cannot see.

When seeking professional help, support your local automotive community by utilizing independent shops that specialize in Dodge Ram Cummins and Hemi systems. These experts often have more experience with TIPM-specific failures than general repair chains. Always check the official guide for your specific VIN, as mid-year production changes in 2007 occasionally altered relay assignments. If your truck is completely immobilized, mobile auto-electricians are often available for on-site diagnostics, saving you the location-dependent cost of a tow truck.

The primary relay location for the 2007 Dodge Ram is the Power Distribution Center (PDC) located under the hood near the driver-side battery. Critical relays like the fuel pump and starter are often modular and easily accessible, while more complex functions are integrated into the internal TIPM circuitry and require specialized testing. Always verify a relay failure by swapping with a known good unit or using a multimeter before replacing expensive modules. If your electrical issues persist after checking the PDC, contact a certified technician nearby to perform a full TIPM diagnostic scan and ensure your truck remains reliable for the road ahead.
