2008 Dodge Ram Starter Relay Location And Troubleshooting Guide

Few things are as frustrating as turning the key in your 2008 Dodge Ram and hearing nothing but a hollow click or complete silence. Whether you are at home or stuck in a parking lot, a vehicle that refuses to crank disrupts your entire day. When your truck fails to start, the culprit is frequently the starter relay—a small but vital component that bridges the gap between your ignition switch and the high-draw starter motor. However, its location within the complex Totally Integrated Power Module (TIPM) system can be difficult to pinpoint without technical guidance. This article provides the exact location of the starter relay, identification steps for different Ram models, and professional testing methods to get your vehicle back on the road.

Locating the Totally Integrated Power Module (TIPM) on a 2008 Dodge Ram

📤 Share


💾 Download

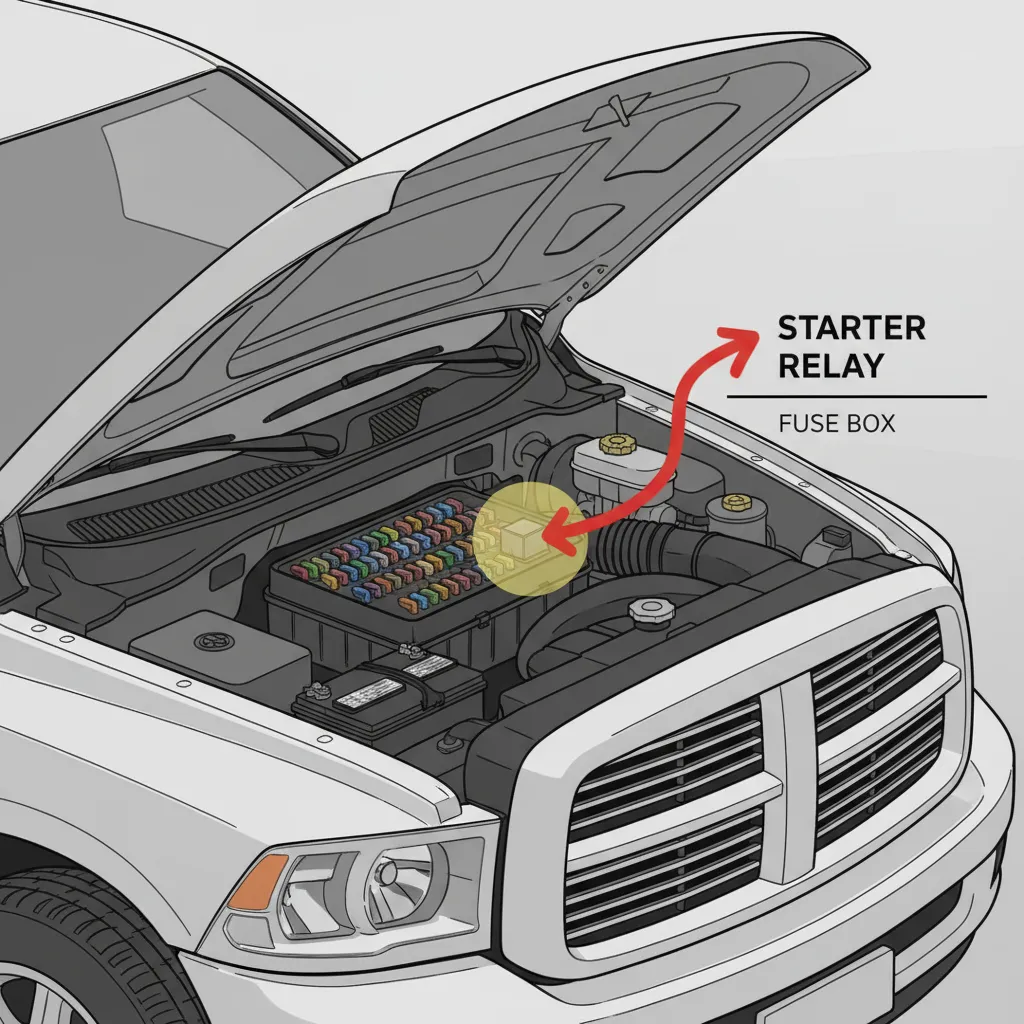

To find the starter relay, you must first locate the Totally Integrated Power Module (TIPM). In the 2008 Dodge Ram, the TIPM serves as the central nervous system for the vehicle’s electrical distribution. It is not merely a fuse box; it is a computer-controlled module that manages everything from your headlights to your fuel pump. This unit is convenient and accessible, situated under the hood on the driver’s side, housed in a prominent black plastic rectangular box.

For owners of the 1500, 2500, and 3500 configurations, the placement is largely identical, though the engine bay landscape varies slightly. On the 5.7L Hemi V8 models, the TIPM sits clearly between the battery and the inner fender. On the 6.7L Cummins Diesel models, which utilize a dual-battery setup, the TIPM remains on the driver’s side, nestled nearby the primary cranking battery. This standardized location across the 2008 lineup makes it easier for the enthusiast community to troubleshoot shared issues.

Accessing the internal components is straightforward. The TIPM lid is secured by plastic latches. By depressing these tabs, the cover can be lifted to reveal a dense array of fuses and relays. The TIPM is a frequent point of failure in 2008 models, and many owners have found that environmental factors like moisture and vibration can lead to internal corrosion. When you open this box, you are looking at the heart of your truck’s power delivery system.

Identifying the Starter Relay Position Within the Fuse Box Diagram

Once the TIPM cover is removed, you will see dozens of multi-colored fuses and several small, rectangular black cubes. These cubes are the relays. Identifying the correct one is critical; pulling the wrong relay while the system is energized can sometimes trigger fault codes in the Body Control Module (BCM). To pinpoint the starter relay, flip the TIPM cover over and examine the embossed schematic diagram on the underside. This is your official guide to the internal layout.

The starter relay is typically labeled as “STRTR RLY” or may be designated by a specific alphanumeric code like K2 or K7, depending on the specific manufacturing run and engine package (Gas vs. Diesel). It is a standard four-pin or five-pin micro-relay. It is vital to distinguish it from the ASD (Auto Shut Down) Relay or the Fuel Pump Relay, which often look identical. The ASD relay, in particular, is available nearby and is often confused with the starter relay because both are essential for the vehicle to run.

The physical relay itself is a small, rectangular component that plugs directly into the TIPM circuit board. Over 15 years of industry experience has shown that these relays can sometimes develop “heat soak” issues, where they work fine when cold but fail once the engine bay reaches operating temperature. If you find the relay feels excessively hot to the touch compared to its neighbors, it likely has high internal resistance and requires immediate replacement.

Recognizing Symptoms of a Faulty 2008 Dodge Ram Starter Relay

Before you spend money on parts, you must confirm that the relay is actually the problem. A “no-start” condition can be caused by the battery, the starter motor, the ignition switch, or the relay itself. One of the most common signs of a failing relay is the “single click” phenomenon. When you turn the key, you hear one distinct click from the engine bay, but the engine does not rotate. This often indicates the relay is engaging mechanically but failing to pass the high-amperage current necessary to trigger the starter solenoid.

Another common symptom is the intermittent start. You might turn the key three times with no response, but on the fourth attempt, the truck fires up perfectly. This is a classic sign of pitted or burnt internal contacts within the relay. Furthermore, a “stuck” relay can be even more dangerous. If the relay contacts weld together, the starter may continue to spin even after the engine has started and you have released the key. This can lead to catastrophic damage to the starter motor and the flywheel ring gear.

Distinguishing between a dead battery and a failed relay is simple: check your dashboard lights. If the lights dim significantly or flicker rapidly when you try to start the truck, your battery or connections are likely weak. If the dashboard lights remain bright and steady but the truck does not crank, the starter relay or the starter motor itself is the primary suspect. Research indicates that starter relay failure is one of the most common electrical complaints in the 2008 Dodge Ram community.

Step-by-Step Technical Testing and Replacement Procedure

If you suspect the relay is faulty, you can perform a professional-grade diagnosis with minimal tools. The fastest field test is the “Relay Swap” method. Most 2008 Dodge Rams use identical relays for the horn and the starter. You can temporarily move the horn relay into the starter relay slot. If the truck starts, you have confirmed the original relay is dead. If the truck still fails to start, the problem lies elsewhere in the circuit.

When extracting the relay, use a pair of relay pullers or a firm “wiggle and pull” motion with your fingers. Avoid using metal pliers, as they can crack the plastic housing or cause a short if they touch nearby terminals. When installing the new component, I highly recommend using expert tips regarding OEM parts. Mopar (the Original Equipment Manufacturer) relays are designed for the specific resistance and cycle-life requirements of the Dodge electrical architecture. Aftermarket relays are available, but reliability can vary.

Professional Solutions and Community Resources for TIPM Failures

If replacing the relay does not fix the problem, you may be facing a deeper issue within the TIPM itself. In many 2008 Dodge Rams, the internal circuit board traces inside the TIPM can burn out or corrode. This means that even if the relay is brand new, the power cannot reach the starter because the “highway” it travels on is broken. This is a common issue serving as a major headache for Ram owners, often requiring a full TIPM replacement which can exceed $1,000 at a dealership.

Fortunately, there are trusted local shops that specialize in TIPM rebuilds. Instead of buying a new unit, these specialists can repair the internal traces and upgrade the components to prevent future failure. Additionally, the Dodge community has developed “TIPM Bypass Cables” for certain circuits, although these are more common for fuel pump issues than starter issues. If you find that the relay is fine but the starter still won’t engage, it is time to have a professional check the wiring harness for rodent damage or corrosion at the starter motor terminals.

The average total cost for a professional starter relay replacement is relatively affordable, typically ranging from $82 to $106. However, accurate diagnosis is the key to avoiding unnecessary parts-swapping. By following the steps outlined above, you can confidently determine if a simple relay swap will solve your problem or if you need to investigate the starter motor or TIPM internals more closely.

Conclusion

Navigating the electrical system of a 2008 Dodge Ram doesn’t have to be a mystery. To summarize, the starter relay is housed within the TIPM on the driver’s side engine bay, directly nearby the battery. Identification requires matching the internal lid diagram to the specific relay slot, usually marked as STRTR or K7. Testing via the swap method or a multimeter is essential before committing to expensive component replacements. If a relay replacement does not resolve your starting issue, contact a trusted local technician nearby to perform a full TIPM diagnostic or starter motor load test. Keeping your Ram on the road starts with understanding the small components that make the big things move.
